MINING AND METALS INDUSTRY

The mining and metals industry uses many materials handling equipment including conveyor systems and pipeline to transport both solid products and liquids. These equipment are subjected to heavy wear and tear. SealXpert Products’ ceramic based composite compounds such as WR204 and WR211 are designed to rebuild and extend the life of these components.

PINHOLE LEAK (3MM) ON CAST IRON UNDERGROUND PIPE

An 8” cast iron underground pipe was facing 3mm hole leak and SealXpert products were applied to solve the problem successfully and effectively without shutdown.First, the pipe surface was cleaned of dirt and debris. Thereafter, Seal Stic Quick Cure Steel Epoxy was applied onto the leak area using SealXpert stainless steel clips. After the leak was arrested, additional Seal Stic Quick Cure Steel Epoxy was applied area the affected leak area.Thereafter, SealXpert Repair Putty was applied around the pipe circumference with approximately 450mm length. After allowing the SealXpert Repair Putty to be cured for around 1 hour, the pipe was eventually reinforced with Wrap Seal PLUS Fiberglass tape.

1355 composite wrap 2 - Mining & Metals Industry

Seal Stic Applied Onto The Leak Hole

1355 thread sealant 2 - Mining & Metals Industry

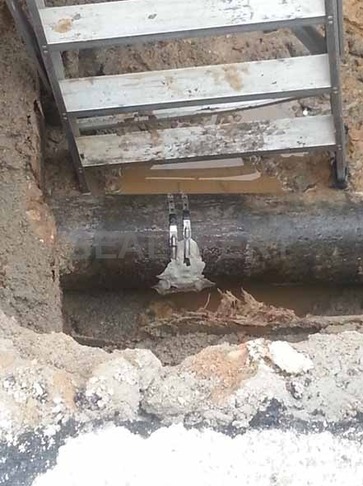

Use Stainless Steel Clips To Tight The Pipe And Applied More Seal Stic On It

1355 epoxy repair putty 21 - Mining & Metals Industry

Applied SealXpert Repair Putty Onto The Pipe With Whole Length 18”

1355 threadlocker 2 - Mining & Metals Industry

Being Cured For Around 1 Hour

1355 flange sealants 2 - Mining & Metals Industry

CARBON STEEL CORROSION

The pipe is severely corroded with many leak clamps installed. First, the pipe surface was cleaned of loose debris and roughened to provide good surface profile. Thereafter, SealXpert Repair Putty was applied onto the severely pitted pipe surface for rebuilding. Upon curing, Wrap Seal Plus Resin and Activator was applied over the pipe surface to provide corrosion protection. Finally, Wrap Seal PLUS Fiberglass Repair Tapes was wrapped around the pipe to reinforce the pipe wall thickness
